Fig. 10


Download original image

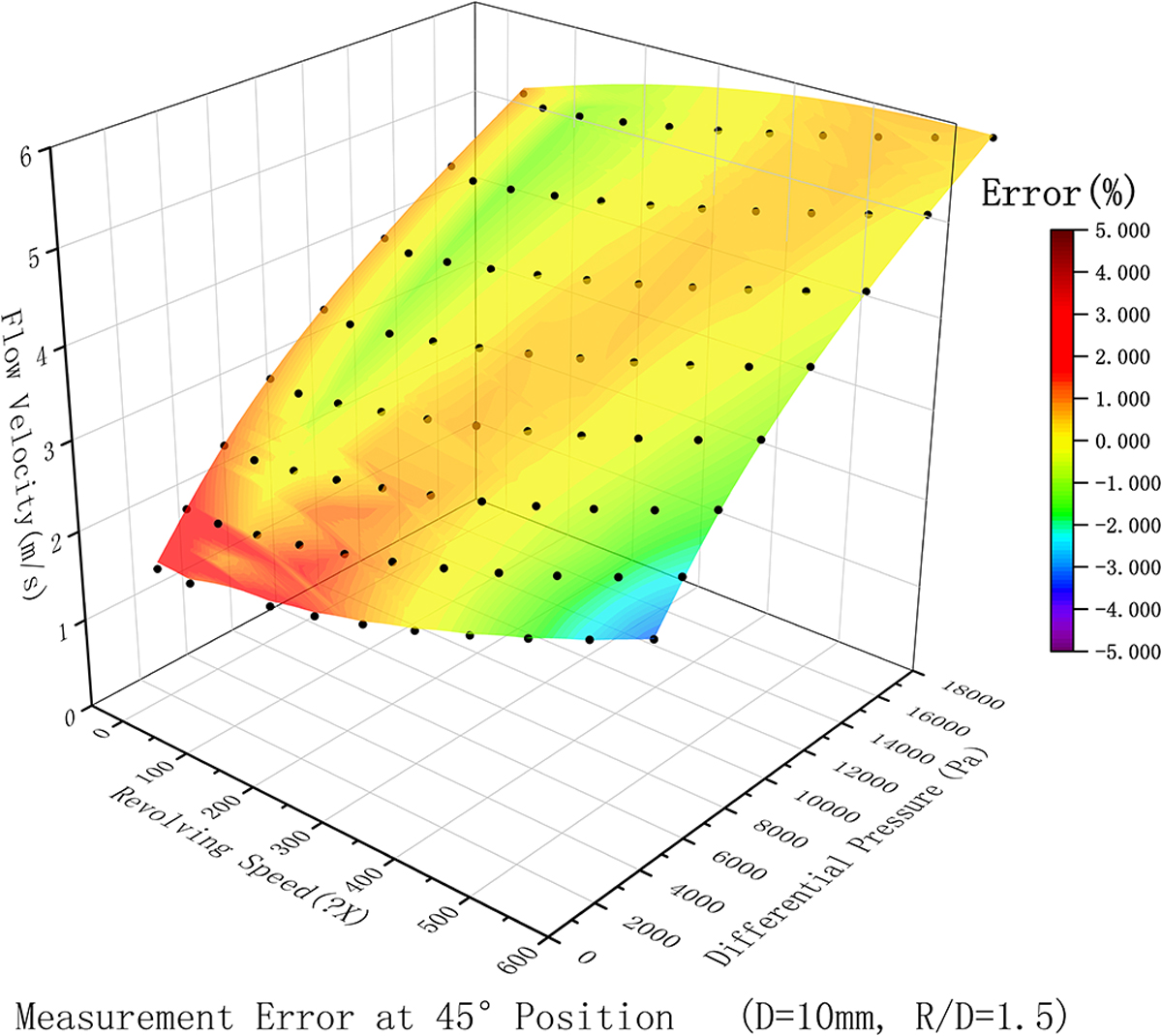

Measurement Error of the Elbow Flowmeter. According to the discharge coefficients derived from differential pressure fitting at 45° position, the velocity calculation of the flowmeter with 10 mm diameter is shown by the point. The color means the relative error.
