Fig. 6


Download original image

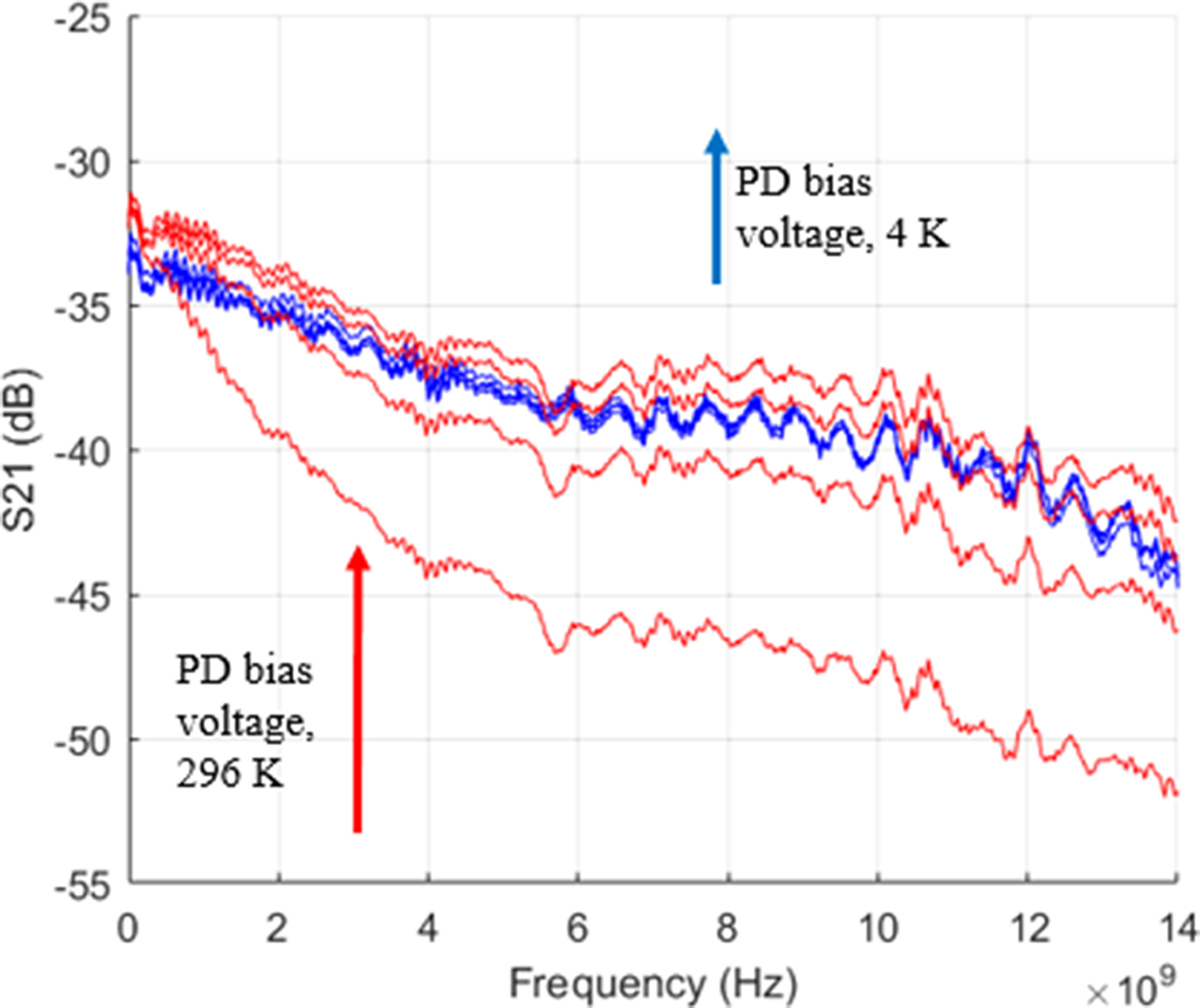

Transmission measurements of sample 1 at room temperature (red lines) and at 4 K in liquid helium (blue lines) for different bias voltages (0, 1, 2, 3 V). A numerical smoothing function was used to remove oscillations seen in Figure 3. At room temperature, full speed is reached for bias voltages close to 3 V. At 4 K, the photodiode reaches full speed at a bias voltage close to 1 V.
