Fig. 7
Download original image

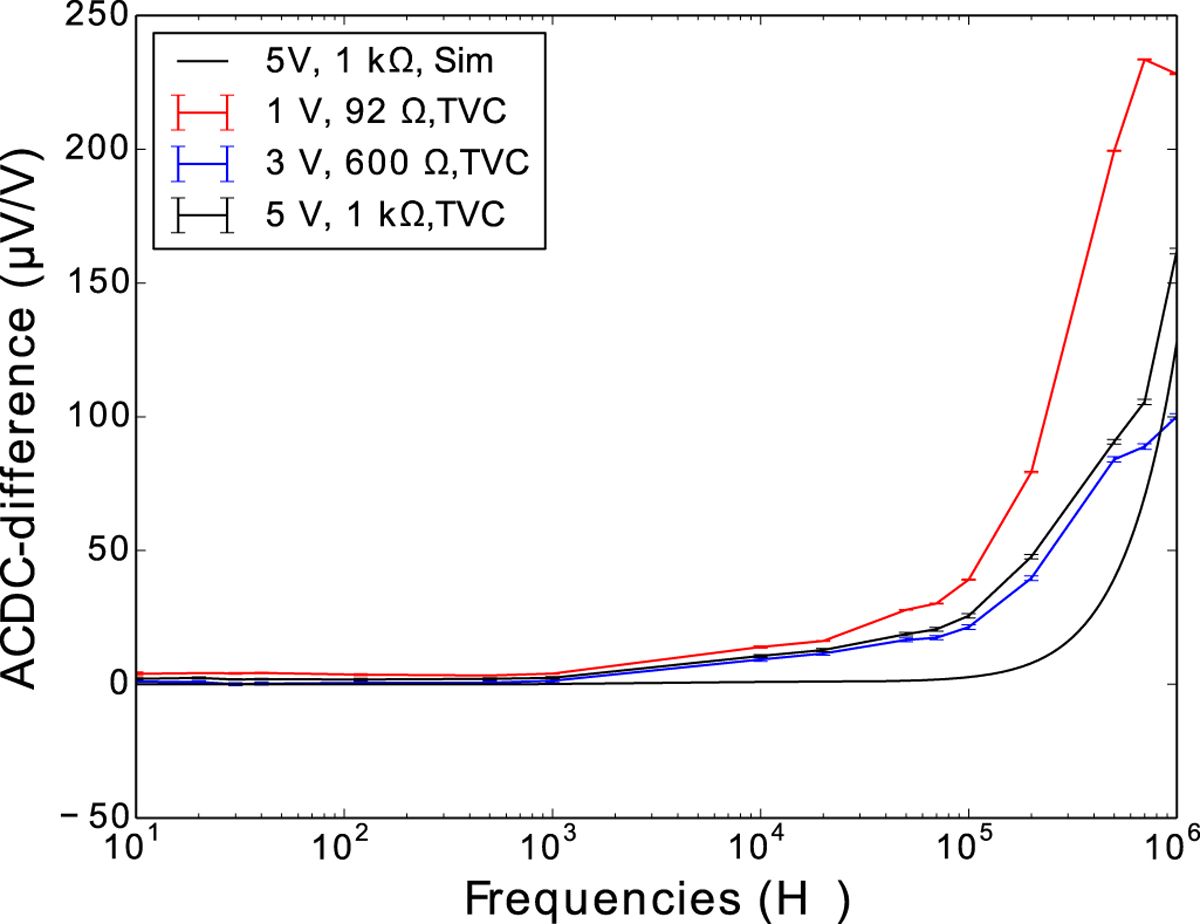

Resulting ac–dc difference for the buffer from 10 Hz up to 1 MHz. The red curve contains the measurements for 1 V, the blue curve contains the measurements for 3 V, and the black curve contains the measurements for 5 V. The equivalent simulation of applied 5 V has been included in black, without error-bars.
